[Open Assets] Lighto Tool Box 1.0

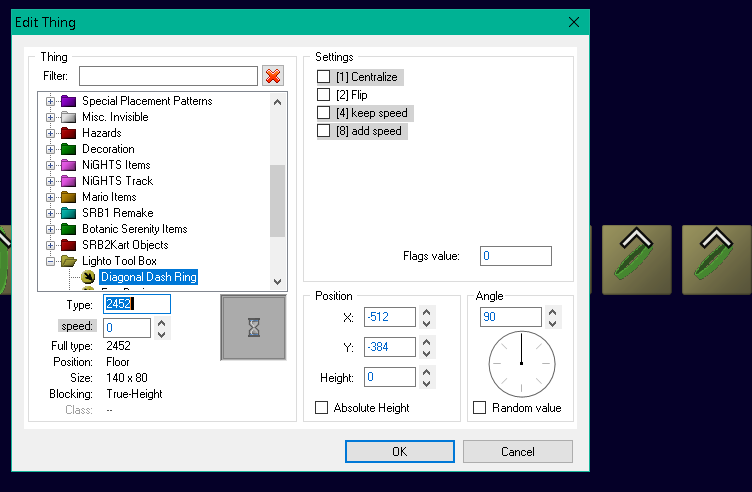

this is how you'll see in the editor

Note that all of them are green, because their color change in-game , and to save object and sprite slots, all of the four different power tiers shares the same sprites.

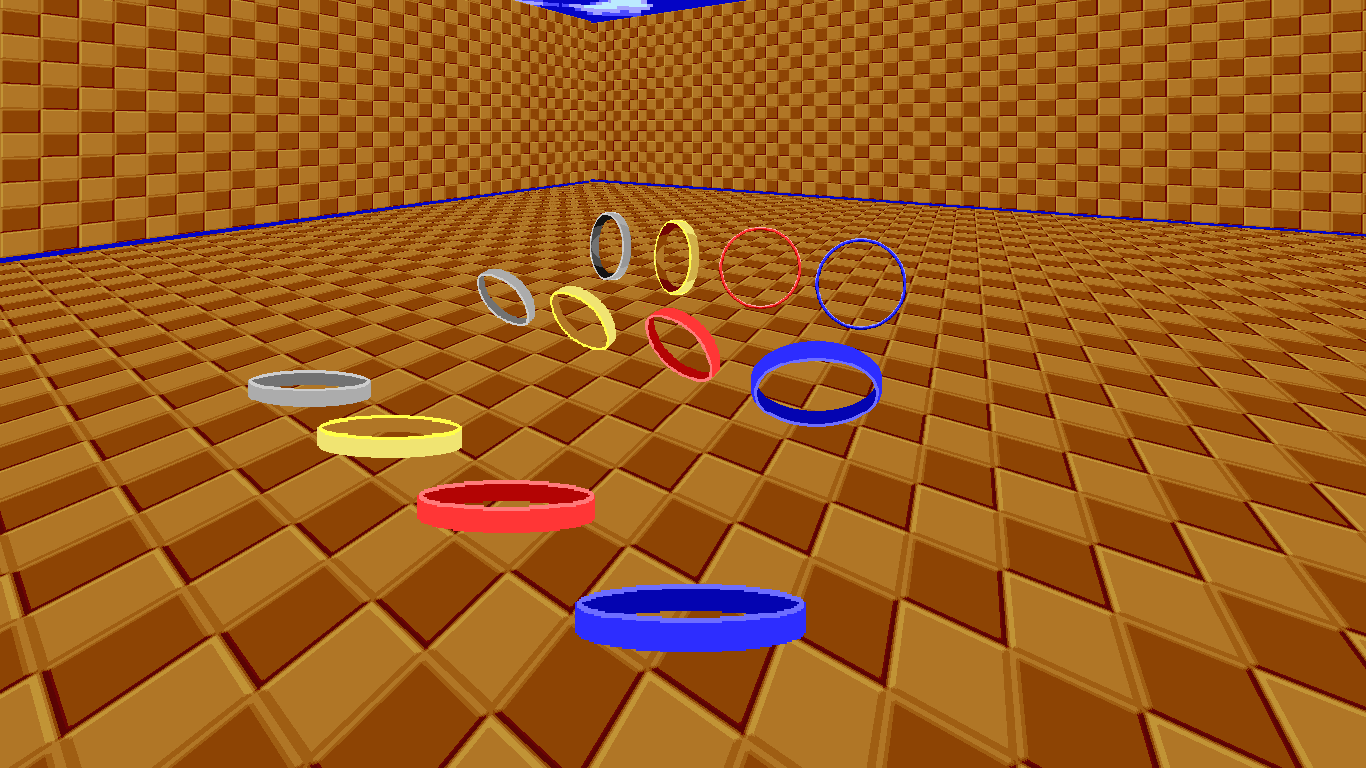

the power tier is from the weakest to the strongest : grey - > yellow - > red - > blue


Flags are very self explanatory:



centralize : will center the player in the dashring, vertically and horizontally (depends on the type)

keep speed : will use the current player speed, it wont go below a minimum speed to have some propulsion

add speed : will add the dashring speed in the players current speed, it stacks up



the speed field (or parameter field, as default), controls how strong the dashring will be, thus changing its color depending on the power, ranging from 0 to 15

pack the contents of the pk3 into yours, if you using wad format, change the name of the lua file for LUA_LBDR

by default, the vanilla ones uses the sector effect 1280 (Speed Pad) and the linedef action/type 4 (Speed Pad Parameters), for the alternative ones, the sector effect is not needed, instead, is needed to run a lua function from a linedef trigger

a simple setup os required for these to work

this is a linedef trigger, the right liendef is using the action/type 399 (Level Load)

and the bottom one is using the action/type 443 (Call Lua Function) , and the front textures has the function name on it



LTB_ALTDSHPAD


skipping this is not optional, without this the script wont work on your map, thats to prevent the script to work on maps where it shouldnt.

there are some basic rules when using those to make sure it has a solid conveyance

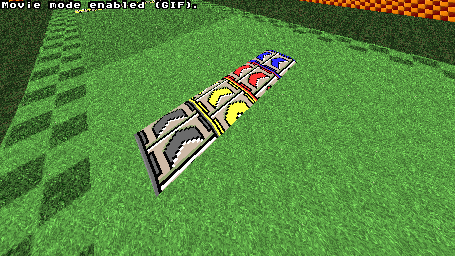

to being with, it should use one of the flats/textures provided in the pk3, so by just seeing the floor, people will know whats to come, and use the colors accordingly following the powert tier (grey to blue, blue being the strongest), and slope the front and the back of the dash pads, so theyre more visible and at last, scroll the floor texture forwards to give the visual feedback of how strong it is.


(visual refference)

the basics to work are:

a sector with a tag (IT DOESNT NEED ANY SECTOR EFFECT, but can have any if desired)

and a linedef with action/type 4 (Speed Pad Parameter) tagged to the desired sector

all of the linedef flags will make it behave different, pay attention to this because there is a lot and is easy to mess up


Upper Unpegged : will stop an yvertical momentum the player has (useuful fof FOF speed pads)
Lower Unpegged : FOF top/bottom (depends on the gravity flip)
Slope Skew: will make the player face the angle of the speed pad, note this will try to account for drifting so speed pad ramps wont throw people off the angle it should when trying to drift store
Not Climbable : will make players have less friction, thus making them slide, this is controlled by the liendef texture's horizontal and vertical offsets. the horizontal controlling how much it will slide in percentage, 50% is more or less slipery, 10% being VERY and 90% not much difference, the default is 64% (if you keep the field at 0), the vertical offset defines how long the effect will ladt, in TICRATE, which means 35 is equal one second, you can do 35*7 for 7 seconds and on, the default is 4 seconds (if you keep the field at 0)
No Midtexture Skew : if the player is already moving faster than the speed pad, nothing will happen
Peg Midtexture : the speed pad force will use the base speed + the current player speed, is additive
Solid Midtexture (no teleport to center): this is the same as the vanilla ones, it wont teleport the player to the center of the speed pad
Repeat Midtexture (force spinign frame): for SRB2Kart this goes unused, this script however, it will only work if the player is going faster than the speed pad force
no sonic : no sound will be played, neither the character voice clip
no tails: it wont display the image trails

with all that, it gives more flexibility when mapping set pieces and can help to travel long straight roads faster

pack the contents of the pk3 into yours, if you using wad format, change the name of the lua file for LUA_LBDP

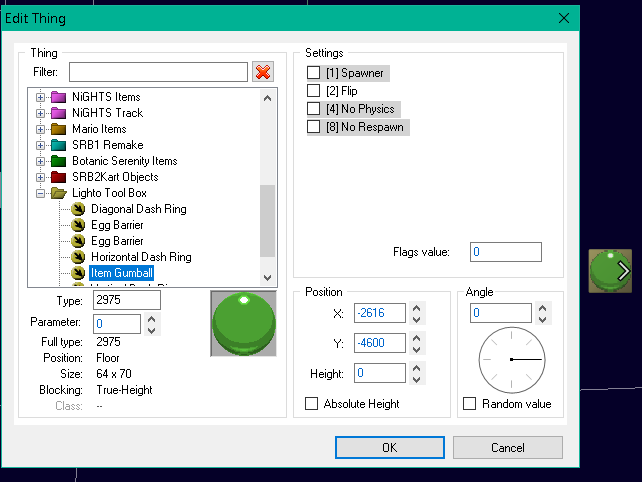

this is how they are on the editor, the Spawner type is a special type that will be further described later

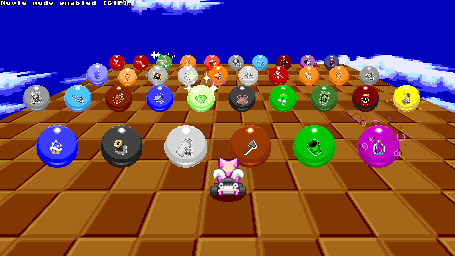

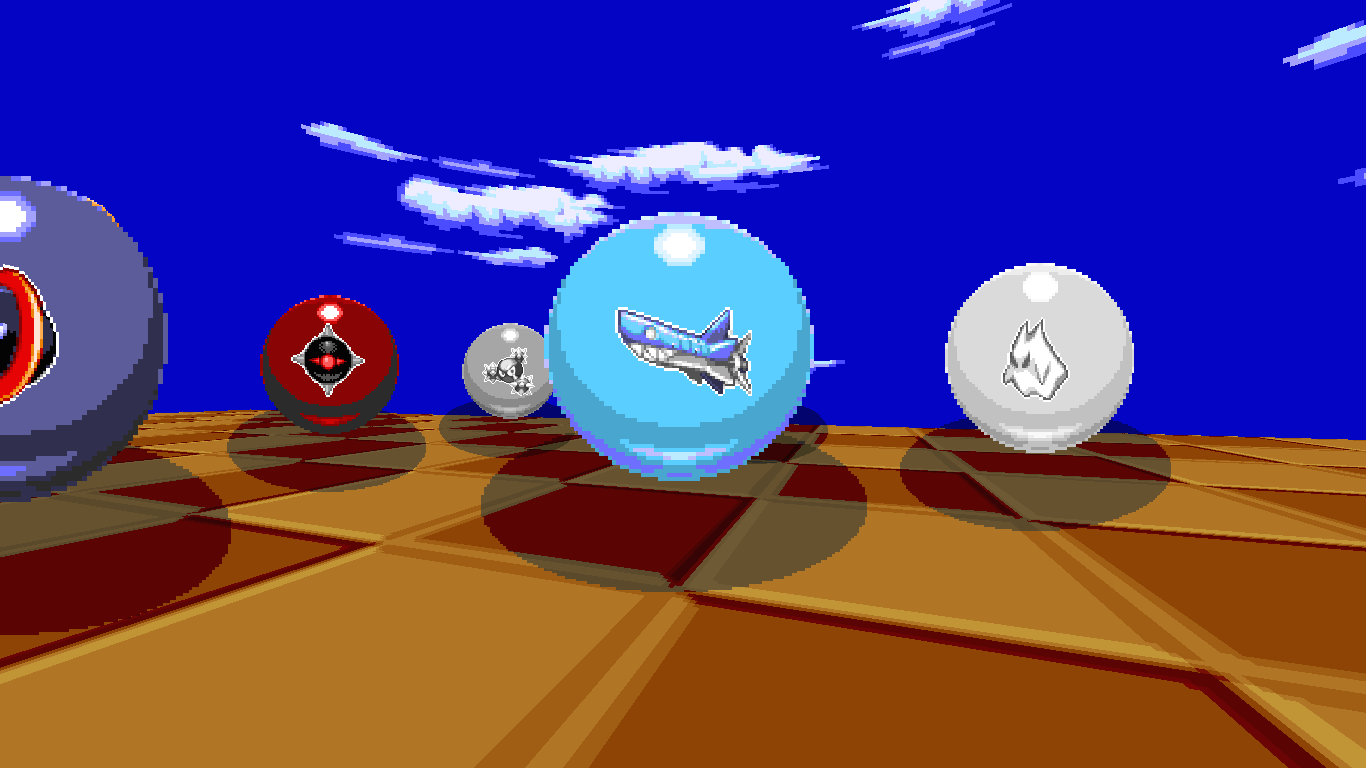

by default, the angle field defines the item type to spawn, leaving at 0 will spawn a random item type at map start

No Physics : as it says, it wont move or interact with anything at all, only players to be collected

No Respawn : coleticting it causes ir to be gone forever, being a one time pickup, note that by default, those will always respawn, unless specified

Spawner : is a special type, when this flag is selected, this specific gumball will be turned into a spawner that will spawn other gumballs in a specified time period.

when using the Spawner type, the item type to be defined will be in the Paramater field, instead of the angle field, the angle field defines the cooldown, if the parameter is left as 0, it will spawn random types every time, else it will only spawn one type, the gumball will be also intangible and invisible only serving the purpose of spawnng other gumballs

pack the contents of the pk3 into yours, if you using wad format, change the name of the lua file for LUA_LBGB

by running a linedef trigger to call a lua function (linedef action/type 443), and using the linedef flag [8]Not Climbable to turn it on/off (check it to turn it on)
and use the name LTB_ITMBLCSTCH on the texture fields


some advices when using this

Make big trigger sectors so players cannot miss by driving around or going too fast, you must ALWAYS use one trigger to turn it on and other one to turn it off, pay atention to the checkpoints as well (so someone dont exploit it)

pack the contents of the pk3 into yours, if you using wad format, change the name of the lua file for LUA_LBIB

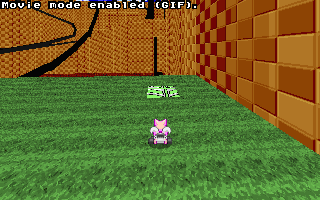

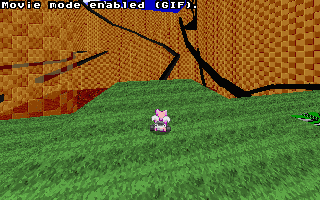

like the item block, this one uses a linedef trigger to call a lua fnction that turns on/off the effect


by running a linedef trigger to call a lua function (linedef action/type 443), and using the linedef flag [8]Not Climbable to turn it on/off (check it to turn it on)
and use the name LTB_INTANGPLR on the texture fields


some advices when using this

Make big trigger sectors so players cannot miss by driving around or going too fast, you must ALWAYS use one trigger to turn it on and other one to turn it off, pay atention to the checkpoints as well (so someone dont exploit it)

pack the contents of the pk3 into yours, if you using wad format, change the name of the lua file for LUA_LBIT

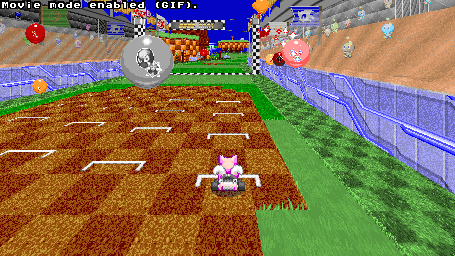

as many other stuff , this uses linedef trigger to call a specific lua function, then turn off a specific pair of gates

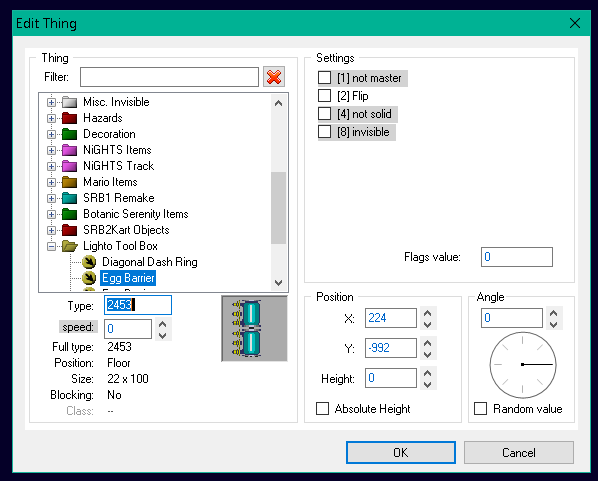

thats the biew on the editor, to make a setup is fairly simple, you need at least two of them, sharing the same ID (angles in increments of 360, like checkpoints) and one of them, ONE, having the not master flag checked.

the pole that is the master one (dont have the no master flag checked) must point towards the pole that has the flag checked, or else it wont work

with that the visual part is done, an aparent egg barrier is placed down in the map

to be able to block players physicaly, it needs some extra steps, fortunately most of it is semi automatic.

to have players to get blocked physically, all that needs to be done is to place a solid invisible FOF in the map, and mark the Not Climbable flag of the FOF control linedef.

something morei mprotant is that, the objects themselves MUST BE inside the sector the FOF is located , like this:



to turn off a Egg barrier, a lua function has to be called with al inedef trigger,
a function named
LTB_EGGBARR, other fields of the liendef controls what the function does




the linedef tag picks which set of egg barriers to affect, is the ID (the number that increments every 360 degrees in the editor) of them, remember that more than 2 barriers can have the same ID, all of them will be affected no matter what


the texture horizontal offset controls for how long a barrier will be turned off until it turns on again, by default (leaving it at zero), will be 6 seconds, kep in mind this uses the TICRATE format, so 35 is equal one second, so 35*6 is 6 seconds

what this function does is tell the barriers to do something, in tha tcase stop shooting laser beams and move the solid invisible FOF out of the way

flags are very self explanatory


not master : has the purpose to tell that this pole is only meant to be used to form pairs, it wont control anything but is necessary to make it work

not solid : will m ake the poles intangible, so players and other objects can pass through them

invisible : makes both of them invisible, meaning it wont be seen, good to use another objects or level geometry as decoration

fun fact, you can have one single non master pole to be connected to several other at same time, and it still works!


here a visual representation of what happens under the hood



worth mentioning this works for sloped FOFS, but only SECTOR SLOPPED ONES

pack the contents of the pk3 into yours, if you using wad format, change the name of the lua file for LUA_LBEB

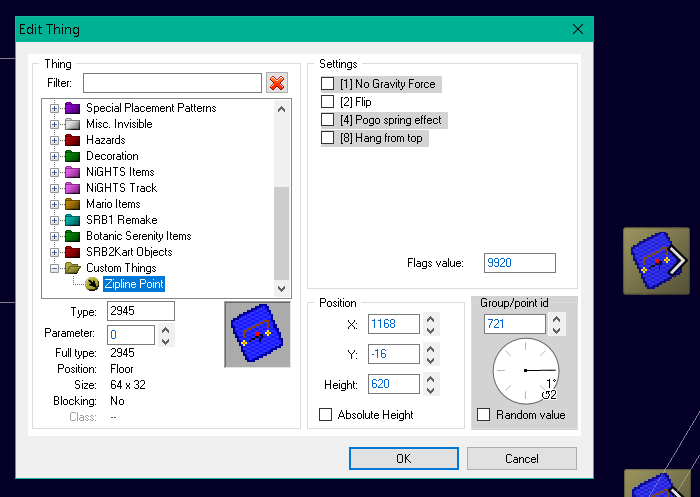

this is the view on the editor

the whole zipline is split in segments, each one containing two points, the start and the end.
See as this

- Each Zipline is a GROUP of SEGMENTS
- each SEGMENT has a PAIR of points (end - start)
-each Zipline GROUP has a unique ID with the PAIRS having a sequential ID that follows the orher of the zipline)

there are TWO IDS
1 - the zipline ID (increments by 1 every 360 degrees)
2 - the point ID (increments by 1 normally)

Example:
Zipline of ID 1, has 6 points, each point will use the zipline ID, and each point will have a increasing ID, starting from 0 and increasing ONE by each one.

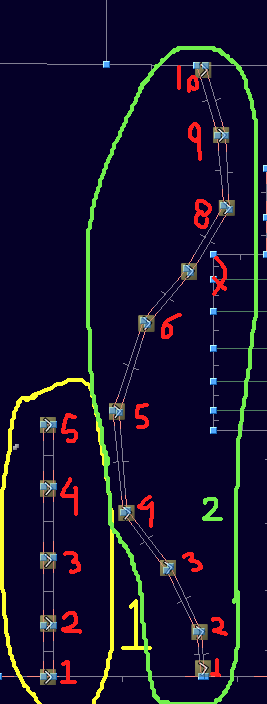

visual example


it has to be done this way so the script can discern with points are connected, and where the zipline start/end or else every point would be connected into a single zipline

the flags does the following


no gavity force : will make the zipline speed be constant, no increase or decrease depending on the vertical angle
pogo spring effect : this will will give players the pogo spring effect upon exiting the zipline
hang from top : will make players do exactly what it says, like ziplines does normally

there is a linedef trigger to help manage ziplines between maps for desired tastes, run a liendef trigger to call a lua function, called
LTB_ZIPLINE


to being with, the linedef flags

Not Climbable : will connect the poitns with the visual colored sparkles (purelly visual)
No Midtexture Skew : Will make both angle of entrance from front/behind be the same (74 degrees)

Peg Midtexture : will make obligatory to object be o nthe ground to start riding a zipline

Solid midtezture : will make objects unable to enter a zipline from points that arent the start/end of it

by default, is easier to enter a zipline goind forward than going backwards (inthe end of it) to make it less frustrating and objects can enter the zipline from any point, but has to be moving in a certain angle (doesnt have to be 100% precise) so sometimes in very situational cases, people may get to ride a zipline from a middle points, in case someone wants to avoid this, the options are there

now to the textures offsets

the front side ones will define the minimum and maximum speed of all ziplines, in fracunits, of course (so normal digits like 1, 2 ,3 ,4 so 24 speed is 24 speed in game, i recommend you trying values there)

the back side is a bit different

the texture horizontal offset, will define the VERTICAL offset objects will have from the zipline adding vertical extra space

the vertical offset will define the color of the sparkles that connects each point
if left as 0, a scheming will be used that changes colors based on the distance of the segments, grey being very short and pruple being very large, going from grey - yellow - red - pink - purple

leaving at -1 it will use a random color (ach individual sparkle) betwen 1 and 145 (any of the game skin colors)

with anything else besides 0 and -1 using the corresponding skincolor number

items like, eggman items, random items will use their vertical momentum when falling straight down in a zipline point so there can be done a setup to make them fall and move alongside the zipline easily

Wind sectors can speed up/slow down objects on the zipline. When a object goes throught a upwards wind fof, the speed increase, when it is a downwards fof, it decreases, no matter the zipline vertical angle with the lenght of the wind linedef setting the strenght of the push

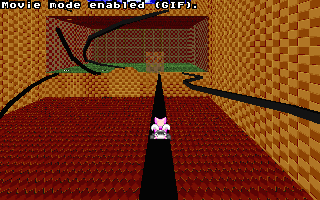

example of upwards wind being used, note how it makes go reverse when going down, because it adds up to the speed.

pack the contents of the pk3 into yours, if you using wad format, change the name of the lua file for LUA_LBZL
