SolCam 1.2.1

Important Disclaimer:
There may be confusion over permissions so let me clarify them immediately. You are free to repackage this in any way, but if you wish to add features to this, please get in contact with me so we can ensure there aren't any breaking changes, and implement new features for all to use! If anyone chooses to edit this library and cause a breaking change in other maps please do not contact me for it.

In short, feel free to use, but please refrain from editing without either talking to me, or submitting a merge request on GitHub.​

An all new library to make any level more dynamic! Add custom cameras to any stage, allowing for more dynamic setpieces! This mod still has more features planned, so please look to give feedback on the project's GitHub page (its also the easiest way to send me bug reports)

Features​

• An all new camera system entirely controlled by the mapper!
• Two new camera modes to make more dynamic levels!
• Compatibility with Goldenshine's Rails
• Partial compatibility with Axis2D
• Full Lua support! Call it to make more engaging levels or bosses!

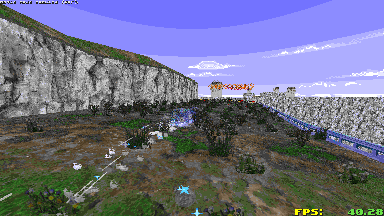

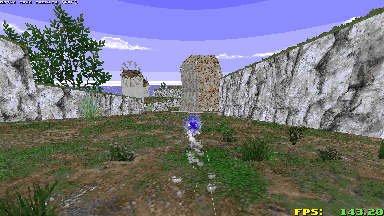

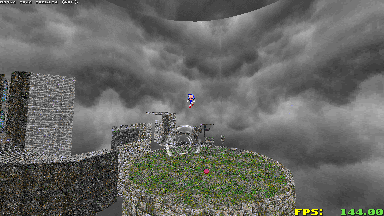

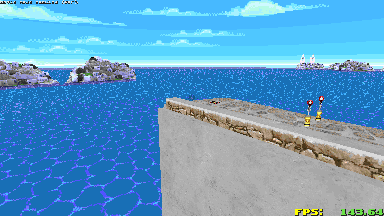

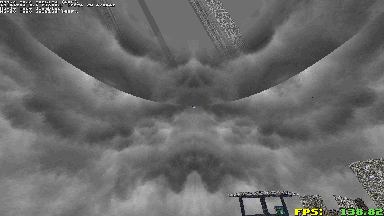

All the gifs above were provided by the beta tester Limo, huge shoutouts for messing with this camera and showcasing its power to the world

How to use (Mapping):​

1. Add lua.solcam = on to your levelheader to enable the camera
2. Create a control sector
3. Set up a linedef trigger
4. Set a line on the sector to type 443, Call Lua Function
5. Input the desired SolCam function in the "Function Name" field to select a mode

How to use (Lua):​

1. Add `lua.solcam = on` to your levelheader to enable the camera (yes this means sol cam only works in supported maps, even via lua to prevent camera issues)
2. Call the functions below to transition the camera

---

Important Notes:​

• BINARY MAPPING IS NOT RECOMMENDED FOR THIS TOOL
• Using any autocancel condition may have some jank, be aware that the transitions may not be perfect

---

Default mode​

This is the "OFF" mode of SolCam, where other cameras can take over, or where the player camera has input.

Function Name: SOLCAMDF​

Lua Function: SC_SetDefaultMode(player, transitiontime, XYangle)​

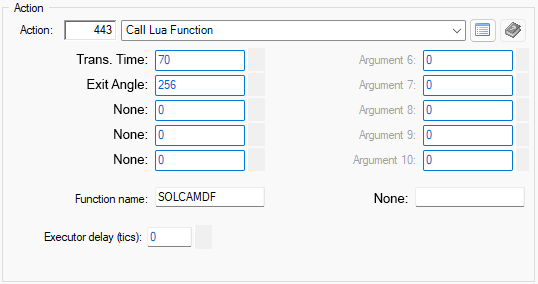

UDMF Arguments:​

• Argument 1: Camera Transition Time [ticks]
• Argument 2: Angle for Exiting Camera [degrees]

Binary Arguments:​

• Linedef Angle: Angle for Exiting Camera [degrees]

Lua Arguments:​

• player: The Player this function is being called for [player_t]
• transitiontime: the time for the camera transition [ticks]
• XYangle: The angle to transition the camera to before giving control back to the player [angle_t]

---

Orbital mode​

Set a fixed camera that follows the player.

Function Name: SOLCAMOR​

Lua Function: SC_SetOrbitalMode(player, transitiontime, radius, XYangle, Zheight[[, canceltics], cancelflag])​

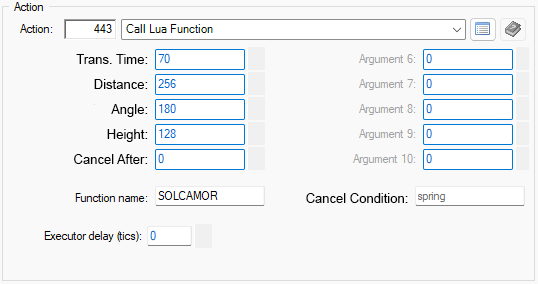

UDMF Arguments:​

• Argument 1: Camera Transition Time [ticks]
• Argument 2: Camera Distance from Player [fracunits]
• Argument 3: Angle from Player [degrees]
• Argument 4: Camera Height Offset relative to Player [fracunits]
• Argument 5: Autocancel after [ticks]
• String Argument 2: Extra Autocancel Condition

Binary Arguments:​

• Front Side X Offset: Camera Distance from Player [fracunits]
• Linedef Angle: Angle from Player [degrees]
• Front Side Y Offset: Camera Height Offset relative to Player [fracunits]

Lua Arguments:​

• player: The Player this function is being called for [player_t]
• transitiontime: Camera Transition Time [ticks]
• radius: Camera Distance from Player [fixed_t]
• XYangle: Angle from Player [angle_t]
• Zheight: Camera Height Offset relative to Player [fixed_t]
• canceltics: Autocancel after [ticks] (set to zero to not cancel)
• cancelflag: Extra Autocancel Condition [string]

Autocancel Conditions​

• jump: SolCam cancels upon a jump
• spring: SolCam cancels when sprung
• grounded: SolCam cancels when you hit the ground
• carry: SolCam cancels when you get carried by something

---

Static Point mode​

Like the original Alternate Viewpoint, except upgraded! Note, this requires you to place an Alternate Viewpoint Thing to use this mode, and either tag it directly to the linedef (UDMF) or tag the sector its in to the linedef (Binary)

Function Name: SOLCAMSP​

Lua Function: SC_SetStaticPointMode(player, transitiontime, pointX, pointY, pointZ[[, canceltics], cancelflag])​

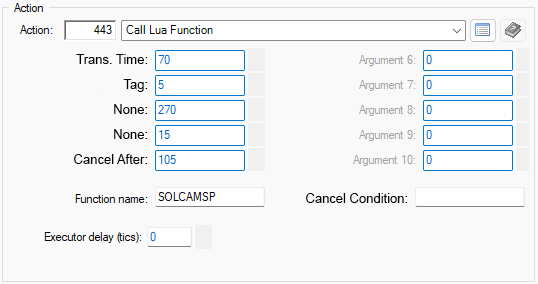

UDMF Arguments:​

• Argument 1: Camera Transition Time [ticks]
• Argument 2: Tag of Alternate Viewpoint Mapthing [number]
• Argument 5: Autocancel after [ticks]
• String Argument 2: Extra Autocancel Condition

Binary Arguments:​

• Front Side X Offset: Camera Transition Time [ticks]
• Tag: Sector tag where the Alternate Viewpoint Mapthing resides [number]

Lua Arguments:​

• player: The Player this function is being called for [player_t]
• transitiontime: Camera Transition Time [ticks]
• pointX: X position of the camera [fixed_t]
• pointY: Y position of the camera [fixed_t]
• pointZ: Z position of the camera [fixed_t]
• cancelticks: Autocancel after [ticks] (set to zero to not cancel)
• cancelflag: Extra Autocancel Condition [string]

Autocancel Conditions​

• jump: SolCam cancels upon a jump
• spring: SolCam cancels when sprung
• grounded: SolCam cancels when you hit the ground
• carry: SolCam cancels when you get carried by something

---

Static Point Fixed mode​

This literally is the original Static Point Mode! Note, this requires you to place an Alternate Viewpoint Thing to use this mode, and either tag it directly to the linedef (UDMF) or tag the sector its in to the linedef (Binary)

Function Name: SOLCAMSF​

Lua Function: SC_SetStaticPointMode(player, transitiontime, pointX, pointY, pointZ[[, canceltics], cancelflag])​

UDMF Arguments:​

• Argument 1: Camera Transition Time [ticks]
• Argument 2: Tag of Alternate Viewpoint Mapthing [number]
• Argument 5: Autocancel after [ticks]
• Angle of mapthing: Direction to Point the Camera in [angle]
• Tilt of mapthing: The vertical tilt angle of the Camera [angle]
• String Argument 2: Extra Autocancel Condition

Binary Arguments:​

• Front Side X Offset: Camera Transition Time [ticks]
• Tag: Sector tag where the Alternate Viewpoint Mapthing resides [number]
• Angle of mapthing: Direction to Point the Camera in [angle]

Lua Arguments:​

• player: The Player this function is being called for [player_t]
• transitiontime: Camera Transition Time [ticks]
• pointX: X position of the camera [fixed_t]
• pointY: Y position of the camera [fixed_t]
• pointZ: Z position of the camera [fixed_t]
• angle: angle for where the camera should look [angle_t]
• tilt: the tilt angle for where the camera should look [angle_t]
• cancelticks: Autocancel after [ticks] (set to zero to not cancel)
• cancelflag: Extra Autocancel Condition [string]

Autocancel Conditions​

• jump: SolCam cancels upon a jump
• spring: SolCam cancels when sprung
• grounded: SolCam cancels when you hit the ground
• carry: SolCam cancels when you get carried by something
